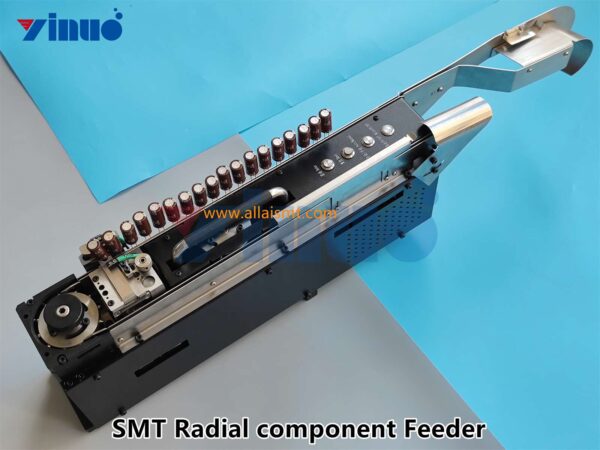

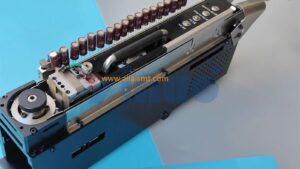

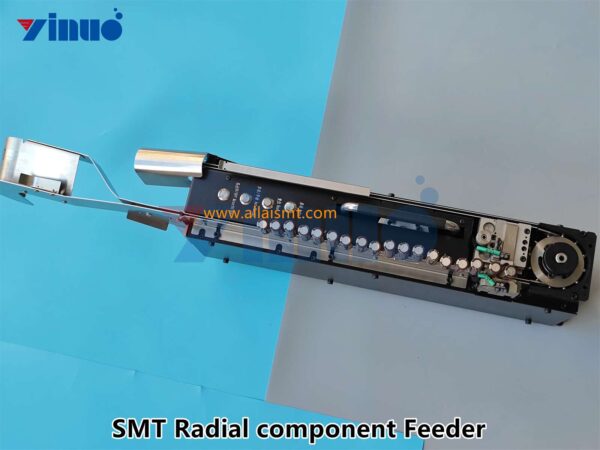

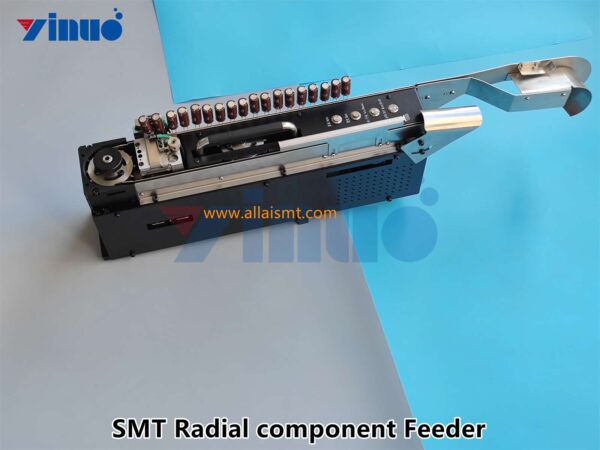

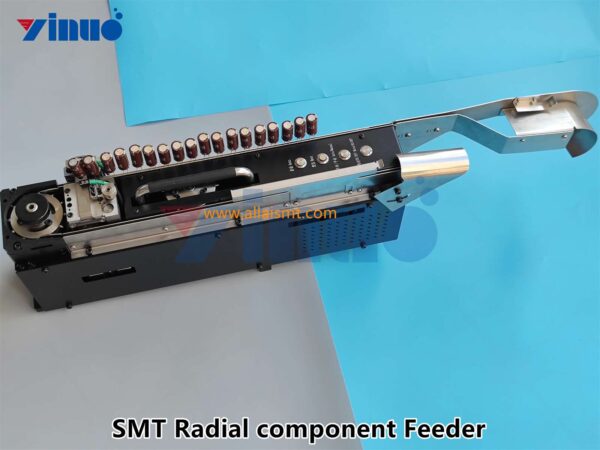

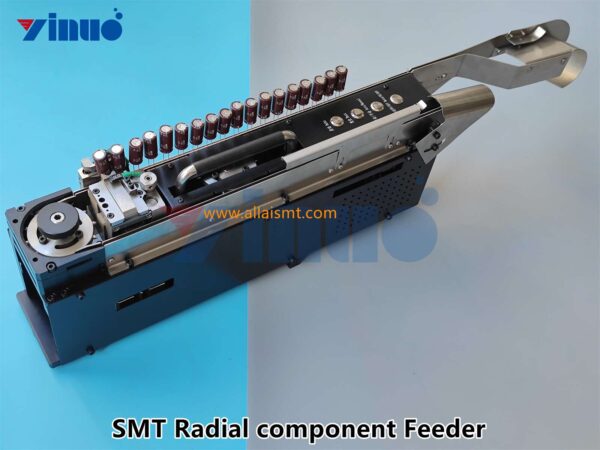

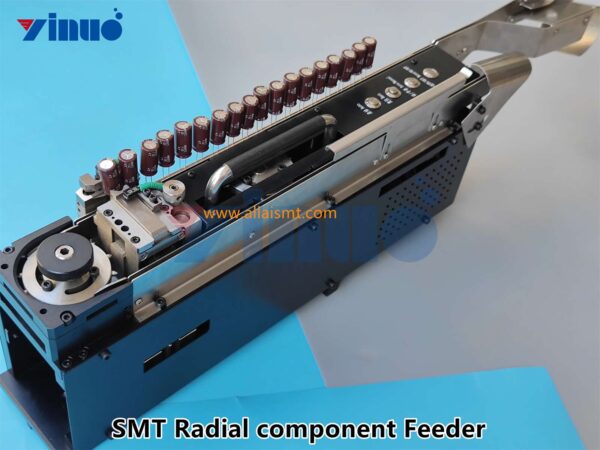

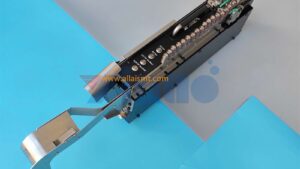

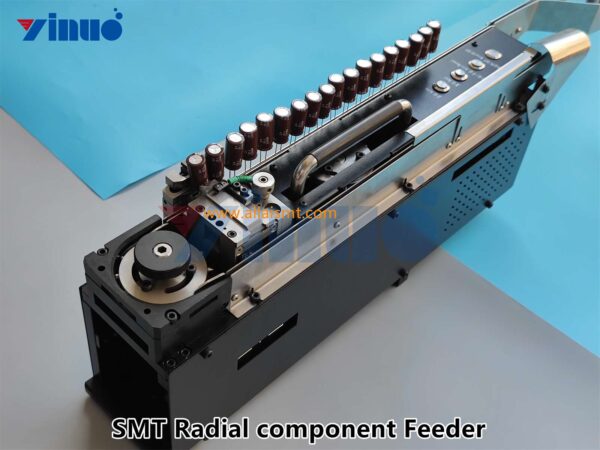

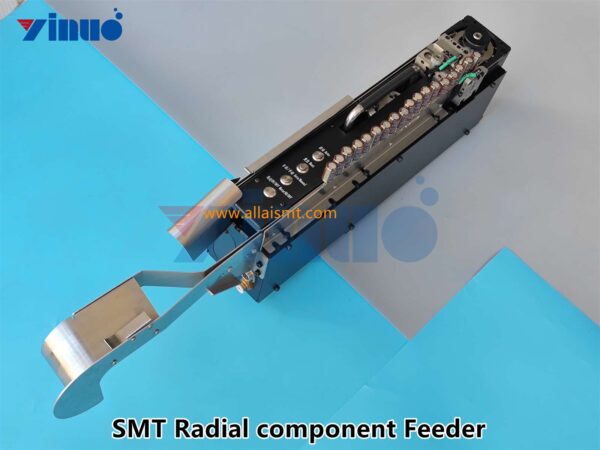

SMT Radial component Feeder
Radial & Axial taped component Feeder for SMT PCB assembly，cutting component radial feeder process include feeding the tape ,cutting,bend the radial component,it can as SMT insertion component feeder use to connect the SMT component insertion machine for automated pick up,Feeder is generally made of steel and aluminum alloy,which guarantees the body stability,low loss and long life.Our feeder can achieve Fuji,ASM Juki, Panasonic，YAMAHA, MYDATA and other machine brands to insert the radial & Axial components.which is with height mechanical matchingand communication to machine.
Get a free quote
Please feel free to tell us what you need! we are here to help!
SMT Radial Feeder specification:
1) Feeder Dimension (LWH): 550*110*130mm
2) Drive Mode: Air-driven
3) Power Voltage: DC 24V/1A
4) Air Pressure & Consumption: 0.4-0.6
5) Tape Component Lead Spa : 1.5~10.0mm
6). Distance Transport Hole: 12.7mm/15mm
7). Distance Transport hole to cutting edge: 11mm
8). Tape Component Height: Max. 35m
9). Component Body Diameter: Max. 18
10). Speed: 0.5 Sec./pcs
11). Feeder Weight: Approx. 10KG

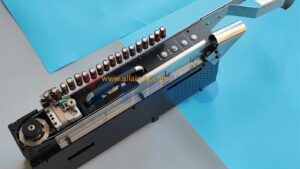

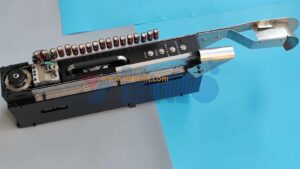

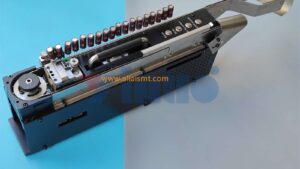

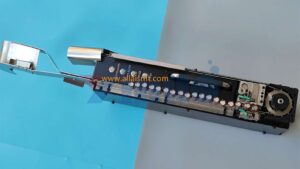

SMT Radial component Feeder
